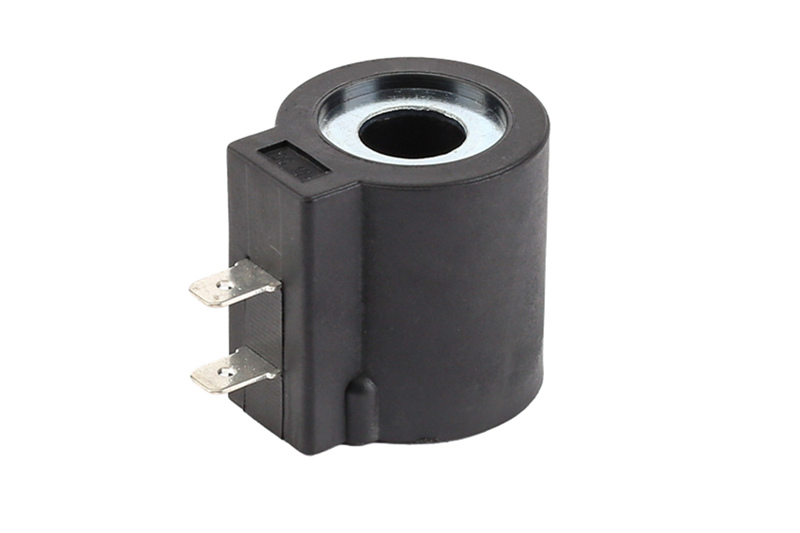

Hydraulic Solenoid Coil
Diameter 13mm Hydraulic Solenoid Coil
Diameter 13mm Hydraulic Solenoid Coil
Diameter 13mm Hydraulic Solenoid Coil
Diameter 13mm Hydraulic Solenoid Coil
Diameter 13mm Hydraulic Solenoid Coil

Diameter 13mm Hydraulic Solenoid Coil

Insulation class H, Customized service, IP65. Hydroforce type
Factory Competitive Price, One Year Warranty, Sample free
Features
  • Powerful magnet force
  • Continuous duty  ED100%
  • Service up to 180℃ with  class H wire, according to IEC317-8
  • Protection degree IP 65, IP67 or others on request
  • Multiple types of voltage and power for selection, AC or DC
  • Customized solution is availale

Product details

Test

Reviews

Application
Suitable for hydraulic system solenoid valves
Technical Data
Standard VoltageDC: 12V/24V;  AC: 24V/220V/380V
Protection degree IP65 (EN60529)
Voltage rangeDC±10%; AC -15%~+10%
Coil Insulation  Class H
Rated Power AC: 8VA; DC: 18W, others upon request Ambient temperature -40℃~+50℃
Duty Cycle ED100% (continuous) Frequency 50/ 60 HZ
General Construction
Bobbie materialHeat resistant thermoplastic polyester materials (PBT, PA66, PPS, PET)
Coil wireClass F wire, service up to 155℃;  class H wire, up to 200℃ ( IEC317-8)
Magnetic yoke  Made by low carbon iron
Encapsulation material With specially designed, high quality BMC thermoplastic material
Electrical Connections
DIN43650 spade plug  2 line

Dimensions
