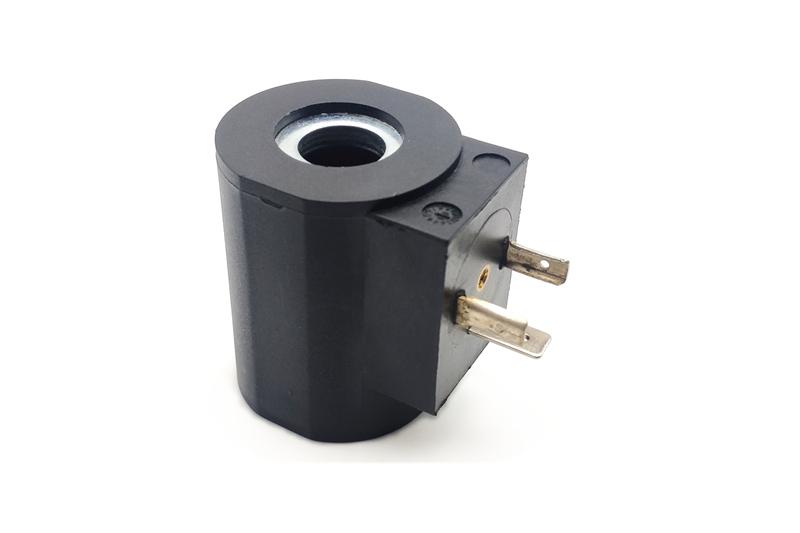

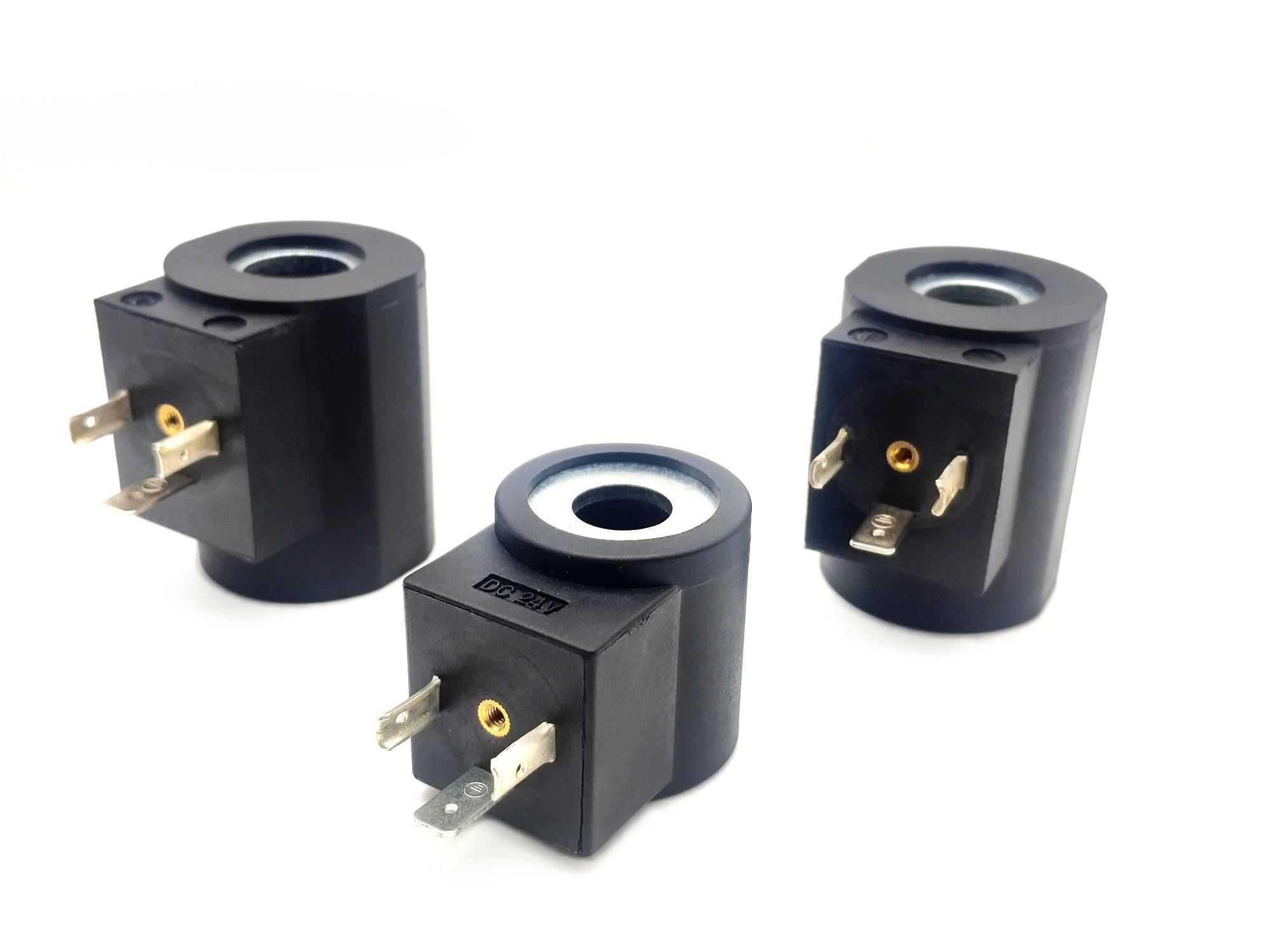

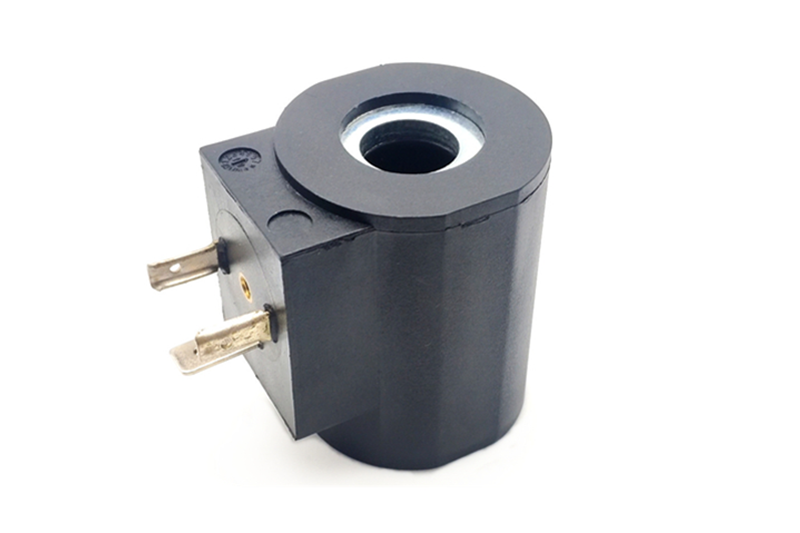

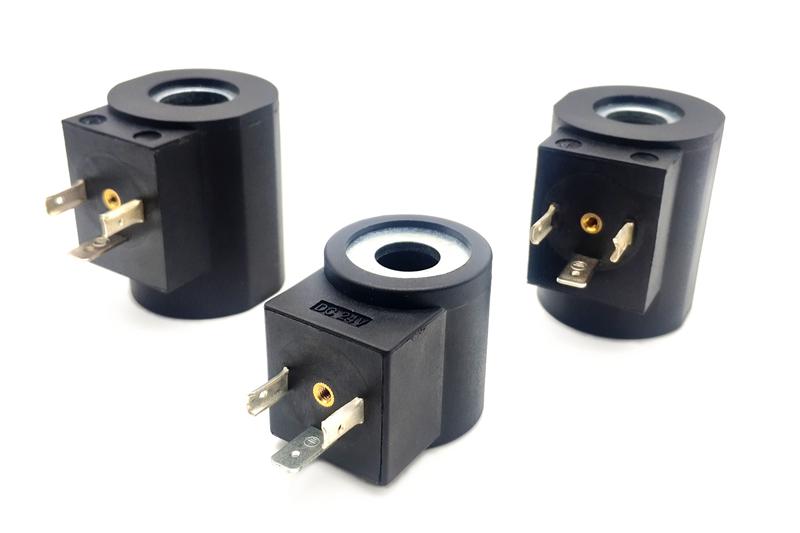

Hydraulic Solenoid Coil Replace Amisco EVI3 Type
Boring size 13/14/16/19. DC/AC/RAC, DIN43650/Deutsch/AMP/Flying lead.
Favorable Factory Price. Free Samples!
Features
- Powerful magnet force
- Service up to 180℃ with class H wire, according to IEC317-8
- Built-in bidirectional diode for option
- Multiple types of voltage and power for selection, AC, DC or RAC
- Protection degree IP 65, IP67 or others on request
- Customized solution is available
Specification
Dimensions
Reviews
The AMISCO EVI3 coil system includes a wide range of solenoid coils suitable for cartridge valves for mobile hydraulic and pneumatic applications.
The EVI3 coils are designed to fit most of the tube sizes applications:
● The EVI 3E coil is designed to fit solenoid tubes with Ø=14mm.
● The EVI 3P coil is designed to fit solenoid tubes with Ø=16mm.
● The EVI 3D coil is designed to fit solenoid tubes with Ø=19mm.
These coils can be made with different powers or characteristics upon customer request. Beris Electronic focuses on the manufacturing and customized development of solenoid valve coils, we provide customers in the hydraulic field with high-quality AMISCO type coils, which can replace the original AMISCO coils, both with very economy cost.
Specifications of Amisco coil made by Beris
The AMISCO hydraulic coil manufactured by Beris has various specifications and parameters to meet different application needs.
Boring Size
13mm, 14mm, 16mm, 19mm for option. Custom is available.
Technical characteristic
General structure
Bobbie material: Heat resistant thermoplastic polyester materials (PBT, PA66, PPS, PET)
Coil wire: class H wire, up to 180℃；class N wire, up to200℃for option
Magnetic Yoke: Made by low carbon iron
Encapsulation material: With specially designed, glass filed PA66.
Electrical Termination
DIN43650, Flying Leads, Deutsch, AMP Junior
Any interest or further idea, welcome to contact Beris Team now.
We are ready to provide you the best suitable solution at any time.
